Simpler is better, except when complicated looks really cool.
At a glance an elegant enough piece of work hammered out on an anvil, but then there's that little curve around the coaming.
Lovely.
It's all fun and games until Darth Vader comes.
Looks like a varnish rubber![]()
DEE-tails,or d'TAILS?
R
Sleep with one eye open.
Does that handle go down into a companionway of some kind?
I wonder how many times a day the mainsheet gets hitched around all that paraphernalia?
not too often i'd wager
this is the size of rig whereby such a tangle would result in having that pump handle flung overboard
Simpler is better, except when complicated looks really cool.
Truly lovely.
R
Sleep with one eye open.
The thick, S-curved part, acting as a fulcrum, to which the handle is bolted, is blunt and is intended to just rest on the deck and the combing, because the pump shaft is taken out when not actually pumping, and the circular thingy just to the lower left in the pic is a cap-plug that sits in the pump hole when the pump is disengaged. Is that correct?
If that “just rests on the deck” then pumping would require two hands. One to pump, and one to hold the contraption in place.
“Come, come, my conservative friend, wipe the dew off your spectacles and see the world is moving" - Elizabeth Cady Stanton
My back hurts just looking at it
It's too bad there aren't more details.
Thinking about it more—the fulcrum part makes mechanical sense, as the pump handle being forced down against the pressure of raising bilge water, and it not being bolted or screwed also makes sense, as it would be a benefit, in my inexperienced opinion, to have it out of the way when not in use, and easily deployed and then removed. But then, without a fastener of some sort, it would rely on the weight of the thing, or another hand, to keep it in place on the pump handle's upstroke, when there is little or no resistance against the plunger part going down. So prolly, then, the device is held in place against the upstroke by a forged on pin that inserts below the coaming, out of view in the photograph, which would be consistent with the S-curve to mate against the coaming, and without using the coaming itself in support of the fulcrum.
I was hoping someone with some actual experience with the rig would chime in. Damn shame about the missing details...
here's a few hints
![]()
Simpler is better, except when complicated looks really cool.

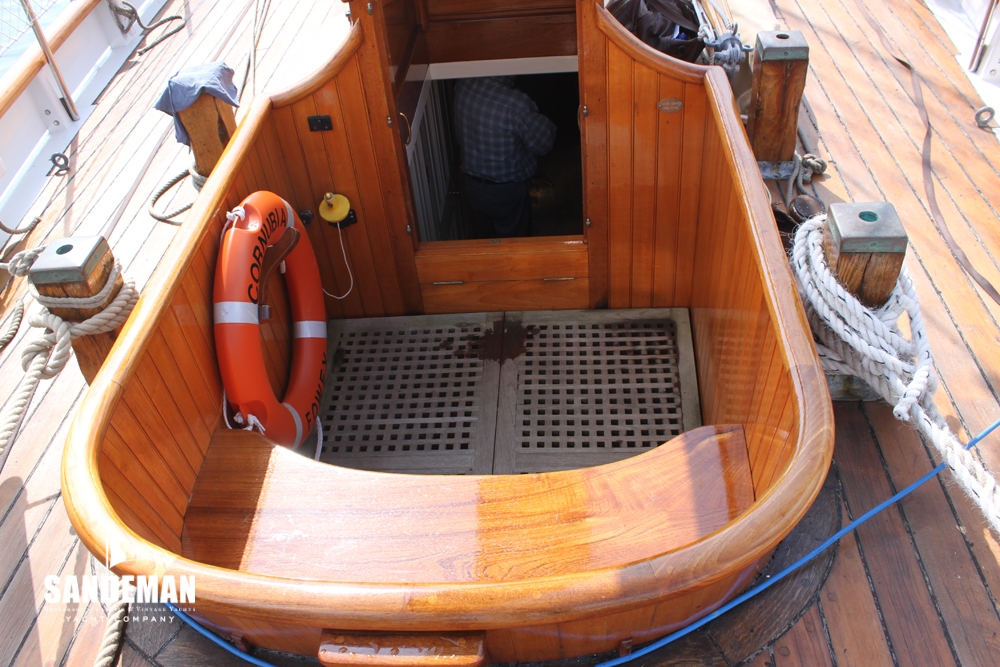

Foxhole cockpit.
Maybe the foot of the pump fits into a socket in the deck?
Kevin
Sent from my iPhone using Tapatalk Pro
There are two kinds of boaters: those who have run aground, and those who lie about it.
Looking at the second and third pics, I'm guessing it fits into a matching iron bracket on the forward side of the vertical part of the coaming under the top rail. Looks like on the bulkhead inside the cockpit there's an oval brass plate that covers the socket.
Just guessing, the pics are just a bit too blurry enlarged, to get that much detail. Whuddya gonna do?
I see now how they keep the sheet from fouling that pump
Main sheets don't foul stuff on the stern of a boat with a real boom, as opposed to these stubby newfangled aluminum things. We used to gybe Dalia all standing with not a care in the world for gallows, cleats, or crew heads.
Or if you let the lines trail overboard, no problem
You can read her history here: https://www.nationalhistoricships.or...r/467/cornubia
Including a nice photo
![]()
It really is quite difficult to build an ugly wooden boat.
