Thread: Homemade woodworking tools.

  1. #1
    Join Date
    Jul 2008
    Location
    Tacoma, WA
    Posts
    10,824

    Default Homemade woodworking tools.

    Get your brains away from politics and guns.
    Snoop around here for awhile.

    http://www.homemadetools.net/forum/1...1776#post75123
    Have a Holly Jolly Christmas🎅

  2. #2
    Join Date
    Aug 2000
    Location
    Wakefield, Quebec, Canada
    Posts
    8,934

    Default Re: Homemade woodworking tools.

    Huh, that's weird. I was browsing the site and was surprised to see they have several "lutherie tools" by me. Somebody seems to have found them on one of the old guitar making threads I used to post here in the Bilge and moved them to that site. They didn't repost the nicer stuff, like my circle cutting jig or homemade thickness sander...instead, they show pics of a dirty old galvanized pipe I use for bending sides, and the push-pins I use to hold parts when gluing up rosettes. And a few people have requested plans! It's kind of embarrassing.

  3. #3
    Join Date
    Oct 2003
    Location
    Hell
    Posts
    90,650

    Default Re: Homemade woodworking tools.

    plans for the thickness sander?!
    Simpler is better, except when complicated looks really cool.

  4. #4
    Join Date
    Jan 2012
    Location
    downward bound
    Posts
    3,158

    Default Re: Homemade woodworking tools.

    Interesting enough, I guess, but man so many of those tools are just retreads of existing designs.

  5. #5
    Join Date
    Nov 2008
    Posts
    25,769

    Default Re: Homemade woodworking tools.

    I do like the palm-size router plane. The mechanism for holding the cutter is simple, but clever.

  6. #6
    Join Date
    Aug 2000
    Location
    Wakefield, Quebec, Canada
    Posts
    8,934

    Default Re: Homemade woodworking tools.

    Quote Originally Posted by Paul Pless View Post
    plans for the thickness sander?!
    That I would understand, but no. We're talking about "plans" for using some push pins to hold rosette parts down while the glue dries...plans for 10" long piece of pipe bolted to a piece of plywood, and a scrapwood Dremel jig I threw together in ten minutes twenty-five years ago.

  7. #7
    Join Date
    Dec 2001
    Location
    Northern NSW Australia
    Posts
    73,455

    Default Re: Homemade woodworking tools.

    The thickness sander on this page looks quite good. http://www.stumpynubs.com/two-stage-drum-sander.html
    '' You ain't gonna learn what you don't want to know. ''
    Grateful Dead

  8. #8
    Join Date
    Sep 2016
    Location
    Louisville, Colorado
    Posts
    4

    Default Re: Homemade woodworking tools.

    Hi guys - I'm the founder of HomemadeTools.net.


    We know a bunch of forums (hundreds that link to us are mentioned here). But we're huge fans of WoodenBoat.com. We have some of your homemade tools listed here: http://www.homemadetools.net/sites/forum.woodenboat.com (everything is credited to this site and to each individual builder, and links directly to the build). We also run a dozen sites for specific build threads: motorcycles, muscle cars, hot rods, cabins, etc., I don't want to link to them all here. Anyway, we found you when compiling our BoatBuilds.net site. We've got 64 of your boat builds listed here: http://www.boatbuilds.net/sites/forum.woodenboat.com . Same deal; everything is credited to each builder and to WoodenBoat, and we should have a decent amount of visitors coming to you regularly from our sites.


    We've also written "Best Build Thread" features on some of your best stuff, seven times. Here they are:


    sailcanoefan's 19' sailboat
    48lobster's 48' Lobster Trawler
    workboat's BlackJack Cutter
    Matt Billey's Bornholm Island Danish Double-Ender Sailboat
    scottmacc's 32' Kahuna Yacht
    lothar4550's Pirate Ship
    Reynard38's Harry Bryan Betty Runabout


    This site is a gold mine of great builds. When you surf the net compiling great build threads, it's easy to fall in love with a certain craft, but there is something very compelling surrounding wooden boat building, so much so that I've found myself searching around for supplies for a basic jon boat build, and I live in a landlocked state! I hope we're able to send you a bunch more traffic. If there's anything that we've missed, let me know and I'll make sure it gets added.

  9. #9
    Join Date
    Dec 2001
    Location
    Northern NSW Australia
    Posts
    73,455

    Default Re: Homemade woodworking tools.

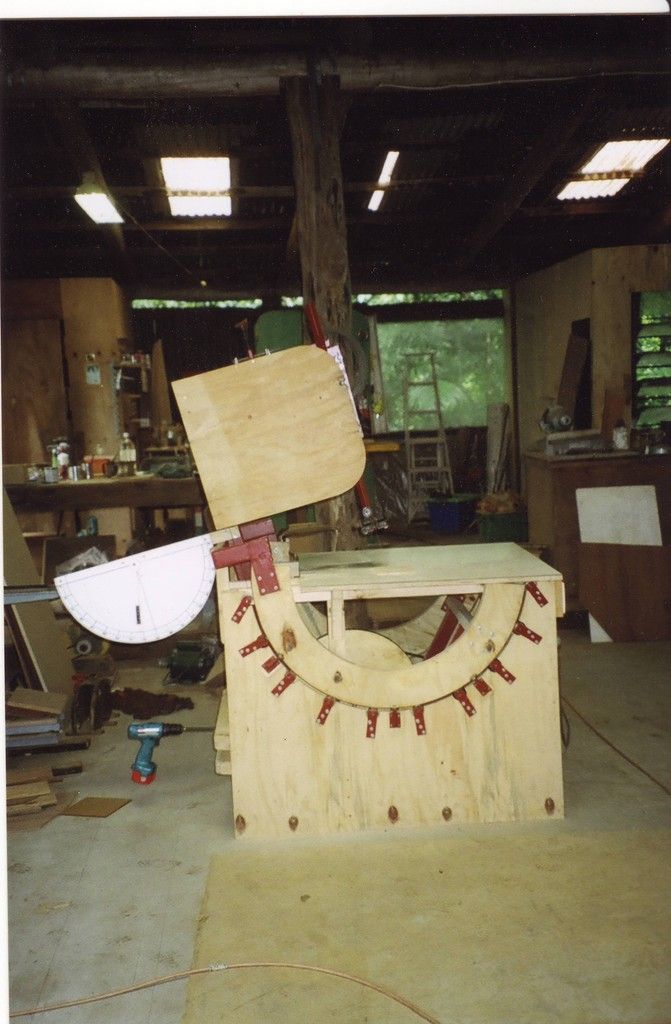

    My homemade ship saw.



    '' You ain't gonna learn what you don't want to know. ''
    Grateful Dead

  10. #10
    Join Date
    Jan 2000
    Location
    Portland, Maine
    Posts
    16,982

    Default Re: Homemade woodworking tools.

    Very cool, HMTs. But how in the world could the Best Build list not include Jim Ldgers thread. As good as all the others are his build is a cut above:

    http://forum.woodenboat.com/showthre...Brewer-catboat

  11. #11
    Join Date
    Feb 2002
    Location
    Diamond, Ill / Savannah, Ga
    Posts
    9,274

    Default Re: Homemade woodworking tools.

    Quote Originally Posted by StevenBauer View Post
    Very cool, HMTs. But how in the world could the Best Build list not include Jim Ldgers thread. As good as all the others are his build is a cut above:

    http://forum.woodenboat.com/showthre...Brewer-catboat
    Unfortunately Jim has closed his threads in protest to Duncan's trip to band camp.

  12. #12
    Join Date
    Sep 2016
    Location
    Louisville, Colorado
    Posts
    4

    Default Re: Homemade woodworking tools.

    That ship saw looks excellent! Any details on the build?

    I know Jim's build; we have it listed here: http://www.boatbuilds.net/yacht-brew...-by-jim-ledger . We need to add it to a future more in-depth feature; I see it's actually been updated since I last checked it out.

  13. #13
    Join Date
    Dec 2001
    Location
    Northern NSW Australia
    Posts
    73,455

    Default Re: Homemade woodworking tools.

    Quote Originally Posted by homemadetools View Post
    That ship saw looks excellent! Any details on the build?

    I know Jim's build; we have it listed here: http://www.boatbuilds.net/yacht-brew...-by-jim-ledger . We need to add it to a future more in-depth feature; I see it's actually been updated since I last checked it out.
    I was building a heavy sawn frame boat at the time and needed something to saw rolling bevels. The saw itself is just a home built 20'' bandsaw mounted to the top "C" section of ply (doubled 3/4''), that C section moves on a series of ball bearings .I should mention that the surface the bearings roll on has a strip of 1 1/2'' x 1/8'' steel screwed on. The center of the C is the intersection of the blade and the table.
    The saw is adjusted with a 1/2'' threaded rod, one end captured but free to spin on the moving section, turning through pivoting long nut. A battery drill turns the rod and thus adjusts the blade angle. The blade angle is visible to the operator on the protractor to the lefy, it has a lead weighted pointer.

    Edited to add, the saw tilts from 45 degrees to the right and about 15 degrees to he left.

    Were I doing it again I'd use a second hand 14'' bandsaw instead of building one.
    Last edited by PeterSibley; 10-06-2016 at 05:06 PM.
    '' You ain't gonna learn what you don't want to know. ''
    Grateful Dead

  14. #14
    Join Date
    Nov 2004
    Location
    Sharon, MA
    Posts
    20,869

    Default Re: Homemade woodworking tools.

    My modest contribution: a combination disk sander and router table. The disk was salvaged from an old Rek-O-Kut turntable; a friend turned a shaft on a lathe for me, and the pillow blocks came from a place that sold machinists accessories. The motor came out of an old furnace fan. Hard to see, but on the far end, there's a 12 x 12 insert plate which takes my Craftsman router, and a custom wooden fence with a channel routed out that accepts a 1.5" hose from my shop vac.

    "Reason and facts are sacrificed to opinion and myth. Demonstrable falsehoods are circulated and recycled as fact. Narrow minded opinion refuses to be subjected to thought and analysis. Too many now subject events to a prefabricated set of interpretations, usually provided by a biased media source. The myth is more comfortable than the often difficult search for truth."







  15. #15
    Join Date
    Sep 2016
    Location
    Louisville, Colorado
    Posts
    4

    Default Re: Homemade woodworking tools.

    Thanks guys, we've added these tool builds to the encyclopedia, credited to your names and linked directly to this thread. Here are the listings:

    Combination Disc Sander Router Table by Norman Bernstein
    Ship Saw by PeterSibley

  16. #16
    Join Date
    Oct 2016
    Location
    Polson, MT, USA
    Posts
    1

    Default Re: Homemade woodworking tools.

    Really liked you ship saw build. Any chance of pictures from other view points?

    I'm heavily leaning toward Stumpy Nub's 24 in., 3 wheeled design for the size of parts that can be sawed and the relatively small size of the machine.
    JonMTO

  17. #17
    Join Date
    Sep 2016
    Location
    Louisville, Colorado
    Posts
    4

    Default Re: Homemade woodworking tools.

    Hey guys - we have a new ebook out: How to Make a Belt Sander. 100% free of course. Click the graphic below to check it out:
